Description
- Built on TRUE STRENGTH® Platform and Completely Sealed and Nitrogen Filled for Reliable Shockproof and Zero Holding Performance
- 30mm Tube with Best in Class Emerald Lens Coatings to Achieve Maximum Light Transmission for Best Clarity
- IPX7 Waterproof Rated
- Premium Low Top Zero Lockable and Resettable Target Turrets with Precise 1/4 MOA per Click Adjustment
- UMOA Range Estimating Etched Glass Reticle

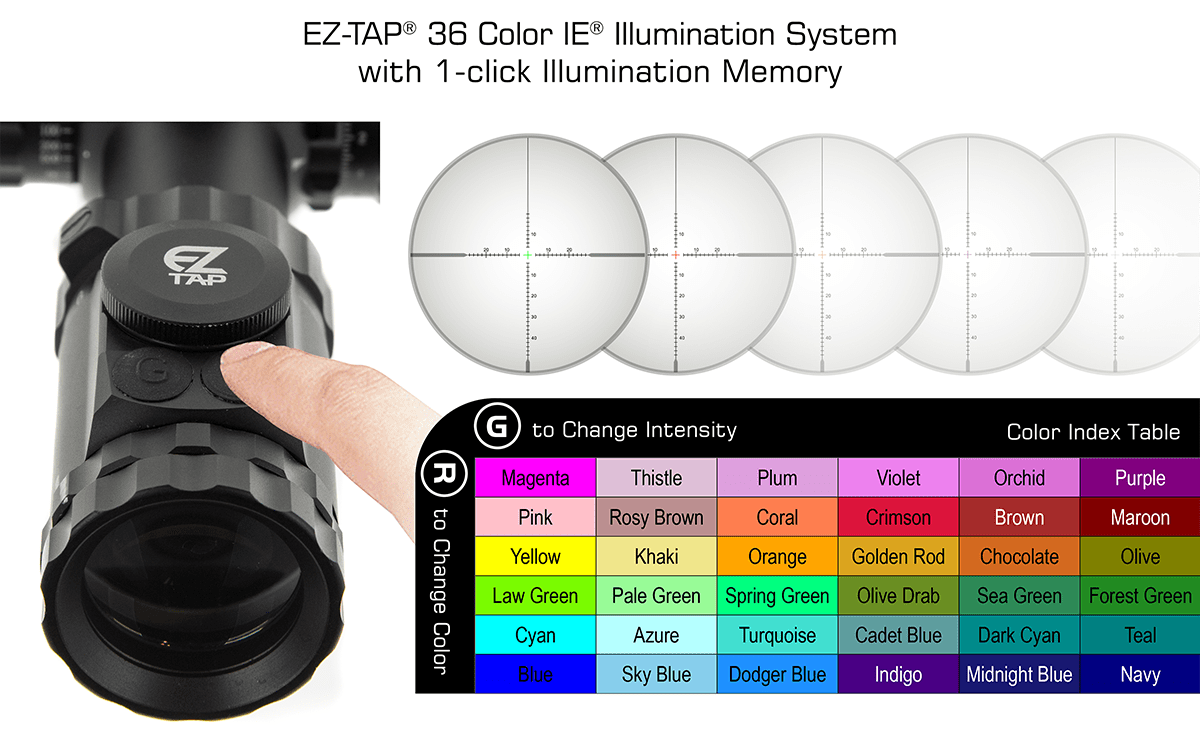

- Innovative EZ-TAP® Illumination Enhancing (IE®) System with Red/Green Dual-Color and 36 Multi-Color Mode to Accommodate All Weather/Light Conditions
- 1-Click Illumination Memory Feature Gets the User Right Back to the Color/Brightness Setting Last Used
- Low Top Side Wheel Adjustable Turret (SWAT) for Parallax Adjustment from 10 Yards to Infinity
- Fine Tune Adjustable/Lockable Eyepiece Diopter
- Complete with Flip-open Lens Caps, 3″ Removable Threaded Sunshade, Cleaning Cloth, and Medium Profile Max Strength Twist Lock Picatinny/Weaver Rings
ETCHED GLASS UMOA RETICLE
The UMOA reticle features hash marks at minute of angle increments for precise range estimation and bullet drop and wind drift compensation. This reticle is the best choice for long-range precision shooters who want clear adjustments and to rapidly calculate holds. The reticle’s center crosshair can be illuminated to assist aiming under different light conditions.
At 10X magnification at 100 yards, the reticle provides a 4 MOA (from end to end) center cross and equally distanced hash marks at 2 MOA increments all the way up to 50 MOA for holdover, 20 MOA for hold under, and 30 MOA on each side for wind drift. The center cross can be illuminated to assist aiming under different light conditions.
UMOA RETICLE RANGE ESTIMATING
1. MOA is half of the distance between the centers of one hash mark to that of the hash mark next to it.
2. Range estimating requires common knowledge of your target’s actual width and or height.
3. Set your scope at 10X magnification or the highest power of your particular scope should your highest power be below or above 10X magnification. View the target through the scope. Estimate the height or width of the target in MOA by determining how many hash marks the target spans.
4. Once the target’s height or width has been measured in MOA, use the following formula to estimate the distance to the target. An example scenario is provided to you below for reference.
RANGE ESTIMATING EXAMPLE
The length of an animal from shoulder to tail is 40 inches (1.016 meters). We see through the scope at 9X magnification that the animal spans 20 MOA. The distance to the animal can be derived using the formula below.
(1.016 x 3,438/20) X (9/10) = Range in meters to the animal
157.2 = Range in meters (or 172 yards) to the animal
| Ballistic Drop Compensation | Yes |
|---|---|
| Battery Loading | Top Loading |
| Battery Type | CR2032 3V |
| Brightness Mode(s) | Manual |
| Caliber Rating | .308 |
| Click Value | 1/4 MOA |
| Diopter Adjustment | -2D to +2D |
| Diopter Type | Friction Secured, Locking Ring |
| Elevation Travel | Up ≥40 MOA / Down ≥40 MOA |
| Elevation Travel (Total) | ≥80 MOA |
| Exit Pupil | 11 – 3 mm |
| Eye Relief | 3.7 – 3.2 in (94 – 82 mm) |
| Field of View (Angular FOV) | 5° – 1.5° |
| Field of View (Linear FOV) | 26.2 – 8 ft @100 yds (8.7 – 2.6 m @ 100 m) |
| Focal Plane | SFP (Second Focal Plane) |
| Illuminated | Yes |
| Illumination Toggle Type | EZ-TAP |
| Magnification Max. | 16X |
| Magnification Min. | 4X |
| Materials | 6061-T6 Aluminum |
| Parallax | 10 yds (9.14 m) – Infinity |
| Parallax Control | Left Side Adjustable Turret |
| Patent | US PAT. 8437079 | EU PAT. EP2520894 |
| Quick-detachable | No |
| Range Estimation | Yes |
| Reticle | UMOA |
| Reticle Color | IE 36-Color |
| Reticle Construction | Etched Glass |
| Rings or Mount Included | 30mm Picatinny/Weaver Rings |
| Surface Finish | Anodized |
| Travel Per Revolution | 26 MOA |
| Weight | 21.4 oz (607 g) |
| Windage Travel (Total) | ≥80 MOA |
| Zero Stop | No |
| Eyepiece Diameter | 1.57 in (40 mm) |
|---|---|
| Length | 10.7 in (271 mm) |
| Mounting Space (Front) | 1.4 in (35 mm) |
| Mounting Space (Rear) | 1.4 in (35 mm) |
| Mounting Space (Total) | 4.3 in (108 mm) |
| Objective Diameter | 2.1 in (53 mm) |
| Objective Tube Length | 3.3 in (85 mm) |
| Ocular Tube Length | 3.1 in (78 mm) |
| Tube Diameter | 30 mm |
