Description
Standard Quick Detach Mount with Unmatched Compatibility

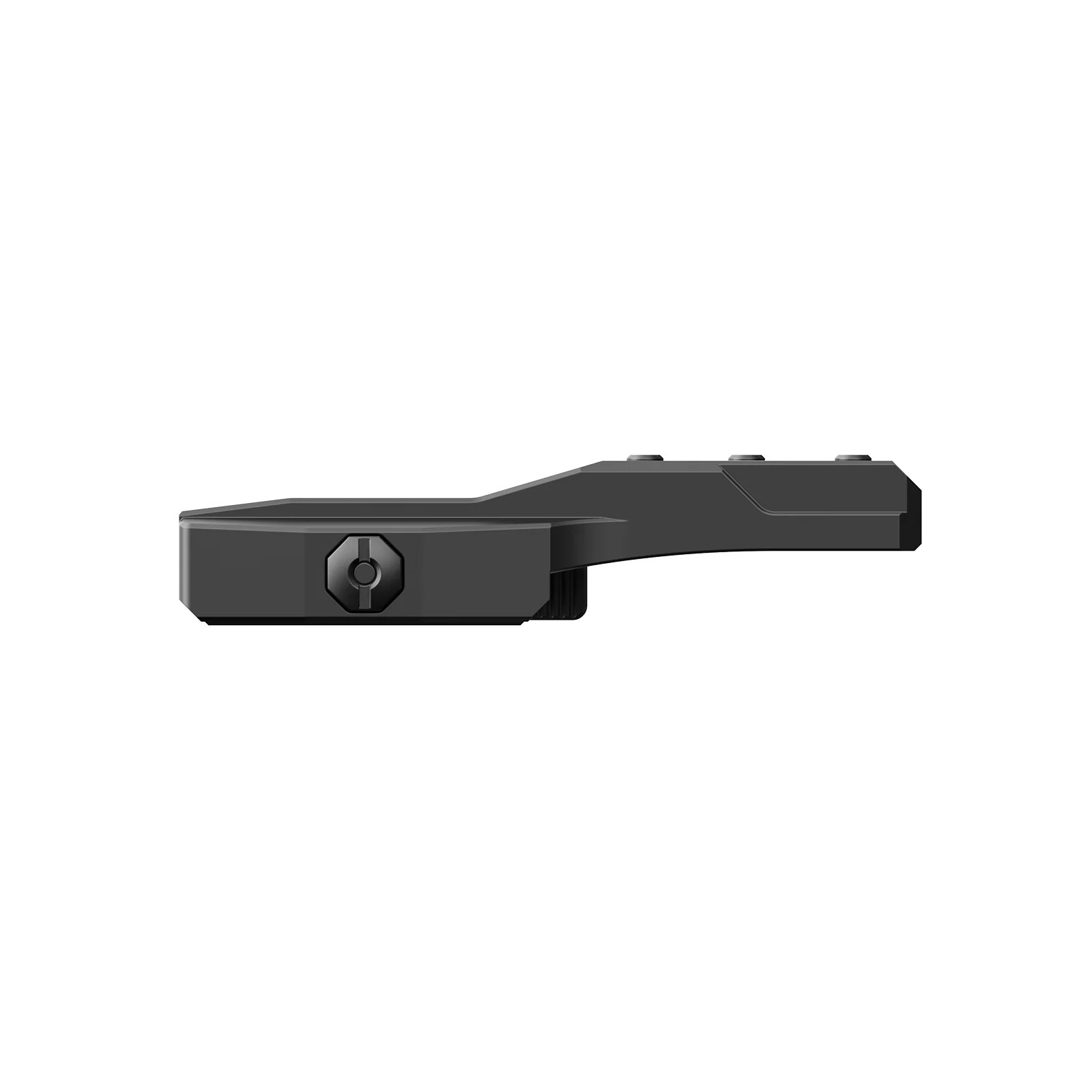

Optimized for perfect eye alignment, the QDS150 provides a 1.5″ height from rail to optic centerline and integrates seamlessly with all DNT digital scopes and other compatible optics. It enables quick optic detachment without losing zero, keeping your setup mission-ready in any scenario.
Swift Detach, Solid Performance

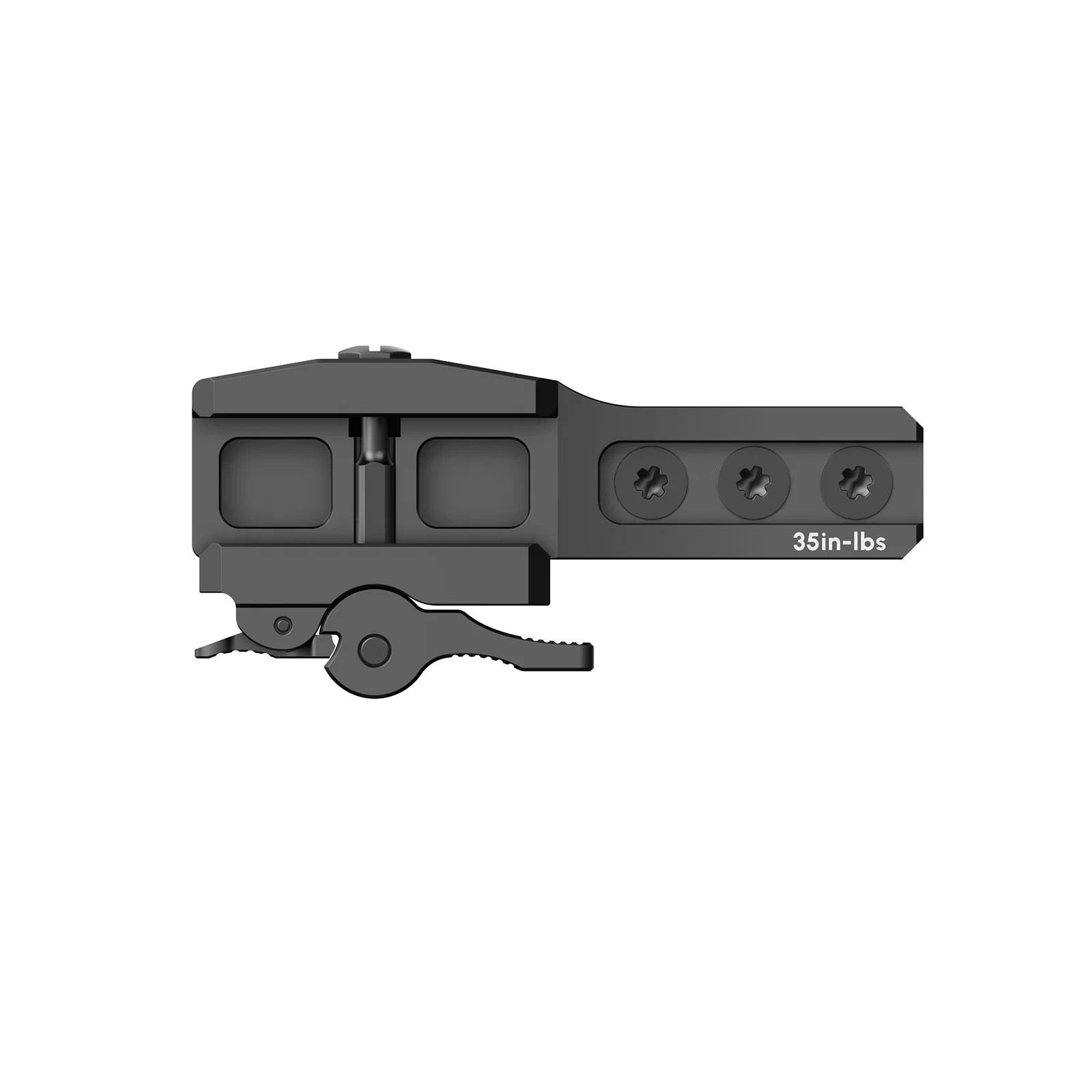

With a modern design and cantilever structure, this rapid detach mount offers flexible eye relief and a customized fit. The no tools detach system ensures quick setup, while the precision locking latch secures your optic. When it’s time to detach, simply press the latch and flip the lever for a fast, smooth transition.
Rugged Durability Meets Elegant Design
Machined from a single block of 6063 aircraft-grade aluminum, the QDS150 delivers exceptional strength and stability. Its hard-anodized matte black finish resists scratches and corrosion, offering a sleek, professional look built to last. Tough and stylish, this quick switch mount performs flawlessly in any environment.
Note: Earlier versions of the TNC225R feature a square mounting base (see image below). These models are not compatible with the QDS150 and QDM150 Quick Detach Mounts.
-QDS150 SPECIFICATIONS-
Typical Use Case
Designed For
Compatible Series
Mount for standalone scope and Clip-On
All DNT Digital Scopes

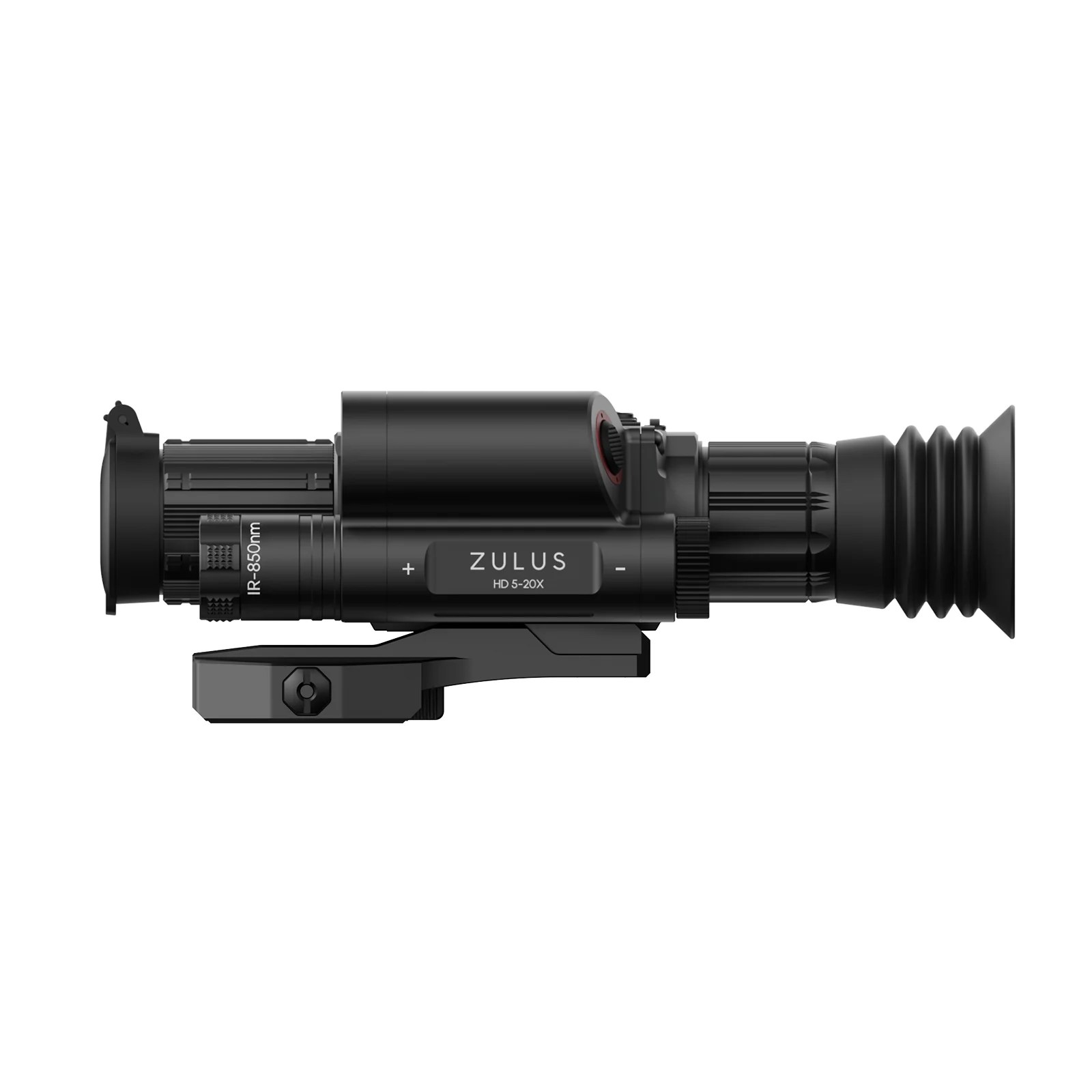

ZULUS / HYDRA / ThermNight
Interface (Scope Side)
Interface (Rail Side)
Material
Scope Slot with Screw Holes
Picatinny Rail
6063 Aircraft-grade Aluminum Alloy
Color / Surface Treatment
Dimensions (L × W × H)
Weight
Matte Black / Hard-Anodization
100.0 mm × 48.0 mm × 22.0 mm / 3.94 in × 1.89 in × 0.87 in
83 g / 2.93 oz
Quick Detach Mechanism
Zero Maintenance Ability
Return-to-Zero Accuracy
Auto-Locking Latch
≤0.1 mil
≤0.3 mil
Recoil Rating
Operating Temperature
Screw Hole Count
800 Gs / .50 BMG
−20 to 50°C / −4 to 122°F
3
Screw Hole Spacing
Screw Specifications
Head Shape [Socket] Diameter × Length × Head Diameter (mm)
Torque
14 mm / 0.55 in
Flat-Head [Torxplus 25] M5×10×9.8
35 in-lbs
